vertical cylinder boring machine - Maneklal and Sons (Exports)

Features for Model: 600
- Suitable for Automotive Engine Rebuilding
- Boring head travels on Ground Guide Ways protected with bellows
- Boring Head fitted with hardened alloy gears to give smooth feel and slide on columns
- Six Speed Gear Box

Model: 600

Model: 400

Model: 300

Model:	600	400	300
Boring Capacity:	32 - 250 mm	38 - 110 mm	38 - 78 mm
Max. Boring Depth:	500 mm	300 mm	300 mm
Max. Spindle Travel:	600 mm	400 mm	400 mm
C.I. to Column Ways:	450 mm	250 mm	250 mm
Useful Table Surface:	1250 x 420 mm	785 x 300 mm	650 x 300 mm
Max. Table Cross Traverse:	50 mm	30 mm	30 mm
Max. Table Traverse:	1400 mm	340 mm	340 mm
Spindle Rotations:	100-150-200-300-400-600 rpm	50 - 550 rpm	50 - 550 rpm
Spindle Head Feed / Rev.:	0.02, 0.04, 0.06 mm/rev	0.05 mm/rev	0.05 mm/rev
Rapid Up and Down:	750 mm	--	--
Spindle Motor:	2 HP (Dual Speed)	1 HP	1 HP
Rapid Up and Down Motor:	1 HP	0.25 HP	0.25 HP
Net / Gross Weight:	2400 / 3400 kg	750 / 1100 kg	700 / 1000 kg
Overall Dimensions:	1.6 x 1.6 x 2.2 & 1.7 x 1.6 x 0.8 m	1.85 x 1.40 x 1.10	1.85 x 1.25 x 1.10
Shipping Volume:	7.80 m³	2.90 m³	2.60 m³

VIDEO OF THE CYLINDER BORING MACHINE MODEL: 600

VIDEO OF THE CYLINDER BORING MACHINE MODEL: 300

Standard Accessories:
With Model: 600: Spindle BS-65 (Boring Capacity Diameter 65 - 135 mm), Boring Tool Setting Device complete with micrometer, Two tool holders for boring, Portable Grinder with suitable Grinding / Lapping wheels, Two sets of parallel blocks of sizes 200 x 600 mm and 120 x 600 mm, Quick Clamping Jacks, Service spanners
With Model: 400 & 300: Spindle BS-38 (Boring Capacity Diameter 38 - 78 mm), Setting up parallels, Boring Tool Setting Device complete with micrometer, Block tightening clamp, Single Cylinder Block Clamping Device, Boring tools dia. 12x35 & 12x45, Chamfering tool, Service spanners

Spindle BS-65 & BS-130 (Optional)

Boring Tool Setting Device

Quick Clamping Jacks

Parallel Blocks

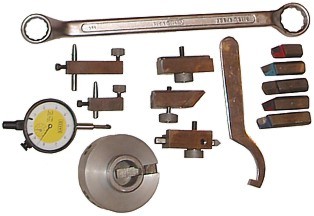

Boring Tools; Cambering, Angling & Facing Tools, Tool Holder, Centering Devices, Dial Gauge, Spanners

Optional Accessories:
For Model: 600: Spindle BS-46 (Boring Capacity Diameter 46 - 70 mm), Spindle BS-130 (Boring Capacity Diameter 130 - 230 mm), ‘V’ Block Stand for ‘V’ Type Engines
For Model: 400: Spindle BS-46H (Boring Capacity Diameter 46 - 90 mm), Spindle BS-60 (Boring Capacity Diameter 60 - 110 mm), ‘V’ Block Stand for ‘V’ Type Engines
For Model: 300: Spindle BS-46H (Boring Capacity Diameter 46 - 90 mm), ‘V’ Block Stand for ‘V’ Type Engines

Model: 300 with single cylinder clamped for boring
