Diesel Fuel Injection Pump Test Benches

Cambia Idioma a Español

Diesel Fuel Injection Pump Test Benches with Mechanical Variable Speed Drive Diesel Fuel Injection Pump Test Benches with Hydraulic Variator Drive Diesel Fuel Injection Pump Test Benches with A/C Frequency Drive Injection Nozzle Tester Equipment for Cummins PT Pumps and Injectors
VIDEO OF OUR TEST BENCH MODEL: SD-8

Diesel Fuel Injection Pump Test Benches with Mechanical Variable Speed Drive

Top

Features:
- Mechanical Variable Speed Drive with the help of expandable
compound pulley system and dual belt fitting with standard drive shaft coupling
- Shaft Bearing, self aligning, self lubricating, totally enclosed
- Oil Supply made by Hydraulic Gear Pump driven by a 1.0 HP motor
- Electronic Digital Tachometer, 0 - 9999 RPM with accuracy of ± 1 RPM
- Electronic Multi Strokes 100 - 1200 in steps of 100 strokes
- Injector Nozzles at 175 kg/cm2 pressure
- Pressure phasing recorded on the degree dial
- Fuel Tank Capacity: 45 to 50 liters
- Pressure gauge of 0-100 PSI (0-7 kg./cm2) and 0-500 PSI (0-35 kg./cm2)
- Measuring panel can be swiveled on either side at 180o for right and left hand pumps
Functions:
- Pump and Gallery Leakage Testing
- Checking Coupling Timing Mark
- Phasing the Pump
- Calibrating (Flow Testing) the output of each element of the pump
- Setting the Pump for Maximum Output
- Complete Cut-off
- Checking of Governor and Feed Pump Testing

Model: SD-8


Model: SD-12

Specifications:
Model: SD-8 SD-12
Main Motor (HP): 3.0 7.50
No. of Cylinders: 8 12
Speed Range (rpm): 100 to 3000 100 to 3000
Gross Weight (kgs.): 950 1000
Overall Dimensions (m): 1.88 x 1.17 x 1.78 1.95 x 1.20 x 1.78
Shipping Volume (m3): 4.00 4.50

Standard Accessories:  One set mounting bracket and quick action clamp for in-line (camshaft) pumps, 8 / 12 High Pressure Pipes with M12 x 1.5 and M14 x 1.5 union nuts, 8 / 12 High Pressure Pipes with M14 x 1.5 union nuts both ends, one set graduated glass test tubes, one flange type bracket for pump mounting, one phasing bar, one machine lamp, set of perforated trays for keeping tools, back lash free flexible coupling, wooden drawer for keeping hand tools, digital electronic voltmeter, flexible pipes for pump connection

Optional Accessories: Attachment for Rotary, CAV & DPA pumps, In-Line fuel pump tool kit


VIDEO OF TEST BENCH MODEL: SD-8


Diesel Fuel Injection Pump Test Benches with Hydraulic Variator Drive

Top

Features:
- Hydraulic Variator Drive

- Shaft Bearing, self aligning, self lubricating, totally enclosed
- Oil Supply made by Hydraulic Gear Pump driven by a 1.0 HP motor
- Electronic Digital Tachometer, 0 - 9999 RPM with accuracy of ± 1 RPM
- Electronic Multi Strokes 100 - 1200 in steps of 100 strokes
- Injector Nozzles at 175 kg/cm2 pressure
- Pressure phasing recorded on the degree dial
- Fuel Tank Capacity: 45 to 50 liters
- Pressure gauge of 0-100 PSI (0-7 kg./cm2) and 0-500 PSI (0 - 35 kg./cm2)
- Measuring panel can be swiveled on either side at 180o for right and left hand pumps
Functions:
- Pump and Gallery Leakage Testing
- Checking Coupling Timing Mark
- Phasing the Pump
- Calibrating (Flow Testing) the output of each element of the pump
- Setting the Pump for Maximum Output
- Complete Cut-off
- Checking of Governor and Feed Pump Testing

Model: SD-8/HV


Model: SD-12/HV

Specifications:
Model: SD-8/HV SD-12/HV
Main Motor (HP): 5.0 7.50
No. of Cylinders: 8 12
Speed Range (rpm): 100 to 3000 100 to 3000
Gross Weight (kgs.): 1000 1050
Overall Dimensions (m): 1.88 x 1.17 x 1.78 1.95 x 1.20 x 1.78
Shipping Volume (m3): 4.00 4.50

Standard Accessories:  One set mounting bracket and quick action clamp for in-line (camshaft) pumps, 8 / 12 High Pressure Pipes with M12 x 1.5 and M14 x 1.5 union nuts, 8 / 12 High Pressure Pipes with M14 x 1.5 union nuts both ends, one set graduated glass test tubes, one flange type bracket for pump mounting, one phasing bar, one machine lamp, set of perforated trays for keeping tools, back lash free flexible coupling, wooden drawer for keeping hand tools, digital electronic voltmeter, flexible pipes for pump connection

Optional Accessories: Attachment for Rotary, CAV & DPA pumps, In-Line fuel pump tool kit


Diesel Fuel Injection Pump Test Benches with A/C Frequency Drive

Top

Features:
- A/C Frequency Drive

- Shaft Bearing, self aligning, self lubricating, totally enclosed
- Oil Supply made by Hydraulic Gear Pump driven by a 1.0 HP motor
- Electronic Digital Tachometer, 0 - 9999 RPM with accuracy of ± 1 RPM
- Electronic Multi Strokes 100 - 1200 in steps of 100 strokes
- Injector Nozzles at 175 kg/cm2 pressure
- Pressure phasing recorded on the degree dial
- Fuel Tank Capacity: 45 to 50 liters
- Pressure & Vacuum gauge of 0-100 PSI (0-7 kg./cm2), 0-500 PSI (0-35 kg./cm2), 0-200 PSI (0-14 kg/cm2) & 0-30 in/Hg (0-760 mm/Hg)
- Measuring panel can be swiveled on either side at 180o for right and left hand pumps
Functions:
- Pump and Gallery Leakage Testing
- Checking Coupling Timing Mark
- Phasing the Pump
- Calibrating (Flow Testing) the output of each element of the pump
- Setting the Pump for Maximum Output
- Complete Cut-off
- Checking of Governor and Feed Pump Testing

Model: SD-8/ACD


Model: SD-12/ACD

Specifications:
Model: SD-8/ACD SD-12/ACD
Main Motor (HP): 5 10 or 15
No. of Cylinders: 8 12
Speed Range (rpm): 0 to 4000
in both Clockwise and Anticlockwise Direction
0 to 4000
in both Clockwise and Anticlockwise Direction
Gross Weight (kgs.): 1050 1100
Overall Dimensions (m): 1.88 x 1.17 x 1.78 2.20 x 1.20 x 1.90
Shipping Volume (m3): 4.00 5.00

Standard Accessories:  One set mounting bracket and quick action clamp for in-line (camshaft) pumps, 8 / 12 High Pressure Pipes with M12 x 1.5 and M14 x 1.5 union nuts, 8 / 12 High Pressure Pipes with M14 x 1.5 union nuts both ends, one set graduated glass test tubes, one flange type bracket for pump mounting, one phasing bar, one machine lamp, set of perforated trays for keeping tools, back lash free flexible coupling, wooden drawer for keeping hand tools, digital electronic voltmeter, flexible pipes for pump connection

Optional Accessories: Attachment for Rotary, CAV & DPA pumps, In-Line fuel pump tool kit


Injection Nozzle Tester

Top

Model: NTL-6000
Pressure Gauge: 0 - 420 kgf./cm2 (0 - 6000 psi)
Connecting Thread Size: M 14 x 1.5
Overall Dimensions (mm): 480 x 290 x 180
Shipping Volume (m3): 0.03

Equipment for CUMMINS PT Pumps and Injectors

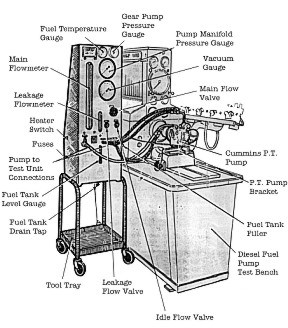

Cummins Pump Test Bench

Top

- MODEL: CTB-5
- Suitable for testing all Cummins P.T. Pumps, A.F.C. Pumps and pumps fitted with aneroid valves
- To comply with the latest standards, the flow meters are calibrated to suit the most recent Cummins test oil specifications
- Powerful variable speed drive provides the necessary power to test a wide range of pumps through a large flywheel
- Continuous reading flow meter
- Dual Speed 5 HP electric motor
- Infinitely variable speed ranging from 150 to 4500 RPM
- Dual scale main flow meter or two separate flow meters (range 100 to 600 lt/hr)
- Digital Tachometer (0 - 9999 rpm with accuracy of +/- 1 rpm)
- Flow Pressure Gauge 0 - 300 PSI (test gauge) with 1 PSI least count
- Vacuum Gauge operated by ball valve 0 - 30 inches hg / 0 - 760 mm hg
- Air Pressure Gauge 0 - 60 PSI
- Gear Pump Pressure 0 - 600 PSI
- Oil Tank Capacity: 30 to 35 litres
- Oil Filtration Unit inside the main tank

Optional: Heating (2 kW) with digital temperature controller 0 - 200 degrees centigrade which can be preset to predetermined temperature with auto cut thermal cutout - electronically operated

Cummins Injector Calibrator

Top

- MODEL: CIC-5
- This injector test stand is designed and built to provide extremely accurate and rapid testing to all P.T. Cummins unit injector.
- All pressure gauges, temperature controllers and tachometers are individually calibrated with Masters
- Independent 1 HP motor for Cam Box operation
- Independent 1 HP motor for Fuel Supply and Injector Hydraulic Clamp
- Two separate Gear Pumps for Fuel Supply and Hydraulic clamp, driven by one motor
- Direct readout in calibrated Test Tube capacity 0 - 150 cc with 0.1 cc least count
- Twin cam with rapid changeover
- Quick hydraulic clamp operated by independent gear pump
- Oil Tank capacity 25 to 30 litres with filtration unit
- Oil level indicator
- Magnetic drain plug mounted on cam box
- Pressure gauge for fuel feed supply (0 - 200 PSI / 0 - 14 kg/cm2) with isolating valve which controls the flickering of needle in pressure gauge
- Pressure gauge for hydraulic clamp (0 - 200 PSI / 0 - 14 kg/cm2) with isolating valve which controls flickering of needle in pressure gauge
- Heavy duty cam box with Taper Roller Bearings which withstand vertical load of cam and injectors
- Rapid and accurate testing of Cummins Injectors
- Correlates to factory standards
- Rapid cam changing to accommodate all types of injector
- Rapid hydraulic injector clamping
- Easily fitted adapters
- Rapid interpretation of results
- Direct metering in test tube

Optional: Heating (2 kW) with digital temperature controller 0 - 200 degrees centigrade which can be preset to predetermined temperature with auto cut thermal cutout - electronically operated

Mobile Test Stand for Cummins PT Pumps

Top

MODEL: CTS-M
Flow Meter: Continuous reading Single Scale Glass
Flow Meter: range 100 to 2000 lbs/hours
Throttle Leakage Meter: Continuous reading Single
Scale Glass Flow Meter: range 20 to 220 cc/m
Fuel Tank: 20 Litres Capacity with 1 kW Heater
Gauges:
    - Gear Pump Suction 4" Diameter - 0.30"
    - Gear Pump Pressure 2.5" Diameter - 0.600 lbs/in2
    - Manifold Pressure 6" Diameter - 0.400 lbs/in2
    - Air Pressure 2.5" Diameter - 0.100 lbs/in2
    - Temperature indicator - Digital 96 x 48 mm
    - Metering Glass reading up to 300 cc/m
    - Direction valve for hydraulic and fuel load cell pressure gauge 0 to 500 lb/in2



Net / Gross Weight (Kgs.): 60 / 100
Approximate Dimensions (m): 1.23 x 0.46 x 0.46
Shipping Volume (m3): 0.26

Injector Leakage Tester

Top

- MODEL: CILT-150
- Flow Meter for Injector Leakage 0-150 cc/m
- Air Pressure Gauge 0-150 lbs/in2
- Load Cell Gauge 0-600 lbs/in2
- Bubble checking glass
- Mechanical clamping system for Injector
- Injector Port Adapter for NT/VT Injectors
- Injector Port Adapter for KT Injectors
- Air Regulator Valve
- Control Valves

Net / Gross Weight (Kgs.): 50 / 90
Approximate Dimensions (m): 0.54 x 0.76 x 0.38
Shipping Volume (m3): 0.16
